Briggs And Stratton Carburetor Linkage Diagram

It is not good to face the constant failure to locate the Carburetor linkage on Briggs and Stratton. The Briggs and Stratton Linkage Diagram proves helpful in replacing the parts, discovering the fault, and for cleaning purposes.

However, if you don’t have accurate information, this guide will help you discover how to find the specific Briggs and Stratton Carburetor linkage for your specific engine model. We’ll help you with the knowledge to troubleshoot linkage issues and get your mower purring excellently once again. Here is the essential Briggs and Stratton carburetor linkage diagram with the information required to locate the parts better.

In This Article

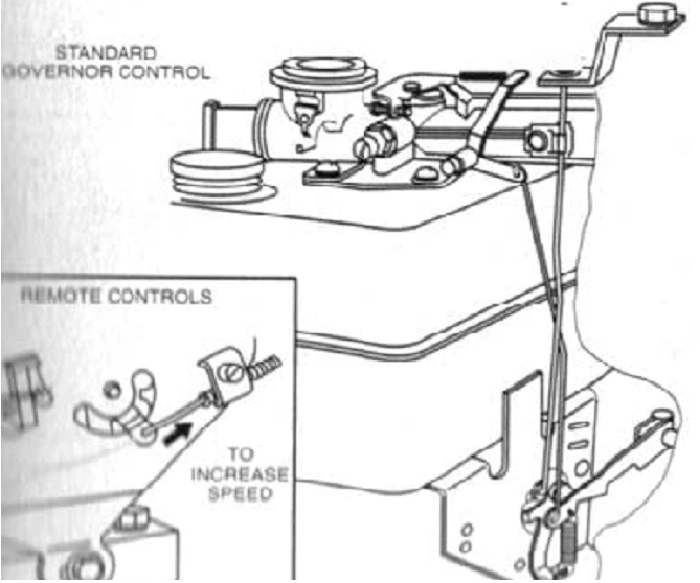

Linkage Briggs and Stratton Carburetor Diagram

Linkage Briggs and Stratton Carburetor Diagram

Don’t confuse the governor linkage with the throttle linkage. For this, it is good to check the Briggs and Stratton governor spring diagram to give you a better insight. Then, look at the carburetor linkage diagram.

Explanation of the Parts

For a better understanding, look at the work’s purpose and carburetor linkage adjustment.

1. Purpose of carburetor linkage

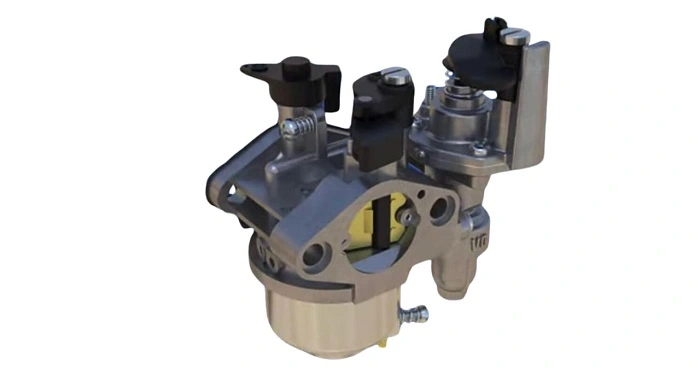

Briggs and Stratton carburetor linkage

 The carburetor linkage in a Briggs & Stratton engine holds a critical role in controlling the engine’s speed and performance. The main purpose of this linkage is to make a mechanical connection between the different parts of vehicles, like the throttle body and accelerator pedal, so that they can work with excellent compatibility. This linkage helps maintain consistent engine performance and ensures the delivery of a proper air-fuel mixture in the engine.

2. Adjustment of the linkage

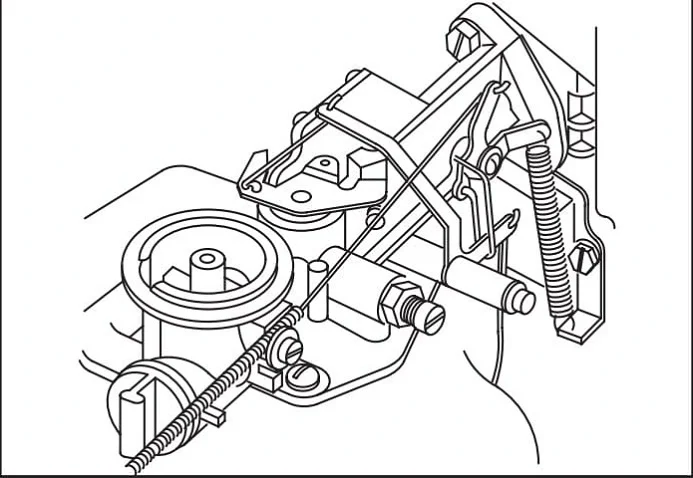

Briggs and Stratton Carburetor

Adjustment of a Briggs & Stratton carburetor linkage is a straightforward process. However, its specifications vary depending on your engine mode.  After identifying the model number, locate the linkage components. The throttle cable starts from the control lever of the throttle, and then it goes towards the carburetor. Starting with the minor adjustments there is another lever that contains a hole, and you can adjust it to keep the cable of the throttle hooks from the ends to the inside.

3. Working on the linkage

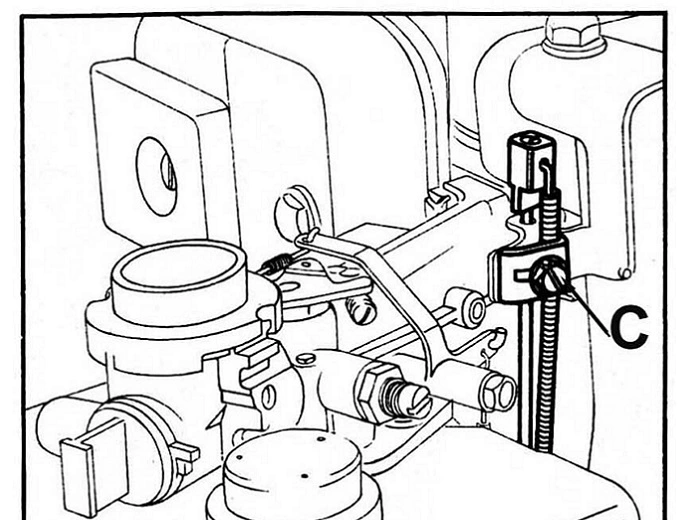

Briggs and Stratton Carburetor working on the linkage

It works to make the cable move freely back and forth while keeping the housing on the spot. For this purpose, there is a clamp, and its primary responsibility is to hold the cable of the throttle housing, but the cable can freely move. Remember that if the carburetor starts to dump a lot of fuel, the carburetor has a big problem. So, there is a need to examine the linkage setup further.

4. Briggs and Stratton Governor Spring Diagram and Structure

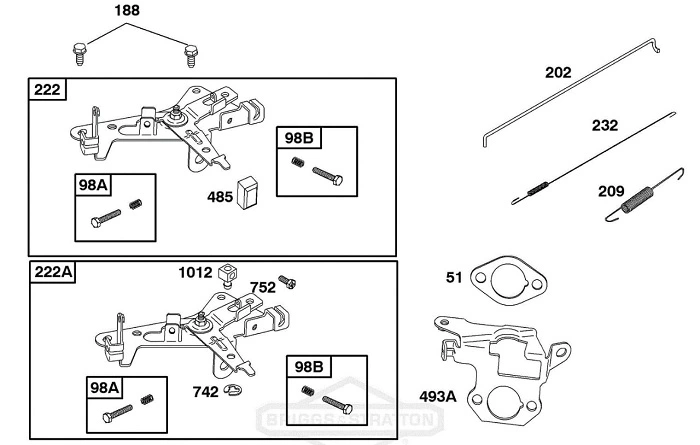

Briggs and Stratton Governor Spring Diagram and Structure

The Briggs and Stratton Governor Spring diagram varies according to the model numbers. The spring’s location is within the engine situated governor. The spring is like a charge for gripping the open throttle. Due to this, the Briggs can achieve the proper and accurate power generation from the engine.

Briggs and Stratton contain two main springs. One controls the engine throttle and the other works for the governor. Both springs are also known as primary and secondary springs. The overall shape of the secondary spring is oval, and the end is just like the primary spring. However, the primary or throttle spring is more significant in length than the secondary or governor spring, and both have round ends.

Sometimes, you may have two springs to connect to your carburetor come off. If you have this issue, it becomes tricky to get them back because it is difficult to recognize the springs. However, if you have information about the length, you can find the right spring for the correct position.

Conclusion

To sum up, mastering the Briggs and Stratton carburetor linkage diagram is essential for proper engine maintenance. It is necessary to know the purpose of the linkage, how to adjust it, and what the governor spring’s role is to avoid fuel leaks or engine destruction. Although this picture has helpful pointers, experienced help should be sought for intricate cases because of quality assurance for Briggs and Stratton’s purposeful serviceability.

FAQs

1. What is the purpose of the Briggs and Stratton Governor Spring Diagram

The diagram shows the carburetor spring is the throttle return spring, placed on the cable. So make sure to fix it with the carburetor or throttle body. It is responsible for closing the valve and helps slow down your vehicle.

2. How do you clean a carburetor linkage?

If you want to clean the carburetor linkage, first know how to use carb cleaner. Cleaning may involve popping the linkage and detaching the top snap ring. Pull it out of the pivot, then clean all the parts with grease. Then, use the same process for the remaining Briggs and Stratton carburetor linkage.

3. What could cause a fuel leak in a carburetor?

There are a few reasons for the fuel leak. It may happen due to the worn-out valve tip, debris, or dust accumulating on the tip of the valve. This debris blocks the tip of the valve and causes a fuel leak in the carburetor. Mostly it happened due to the improper fitting and damaged gasket.

4. What does Governor Spring connect?

The governor and secondary spring connect the governor’s throttle arm linkage loop. At the same time, the throttle lever placement is on the control bracket in front of the carburetor.
